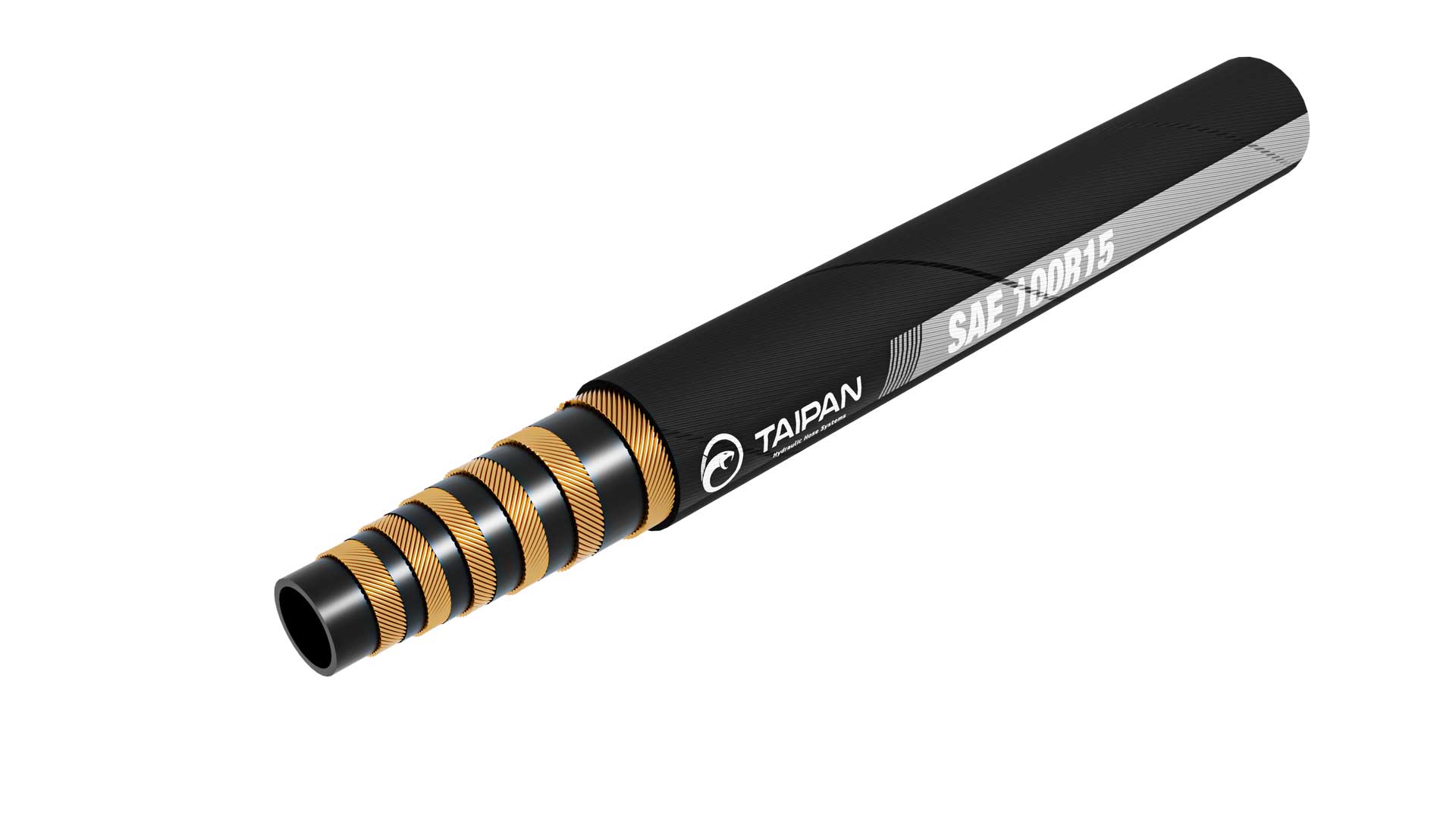

SAE100R15 - 4-6 Wire Extra High-Pressure 6000PSI Hose

This spiral, non-skive hydraulic hose is designed for extremely high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R15 standards. Tested over 1,000,000 impulse cycles at 133% of working pressure from -06 to -12, and 120% of working pressure from -16 to -32.

Specification

Construction: Four plies: -06 to -16  |  Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R15 and EN856 R15
Approvals: ¾” & 1” – DNV, MSHA, BV | 1 ¼” & 1 ½” – DNV, MSHA, LR, MED, ABS
Temperature Range: -40°C – 121°C (intermittent to 125°C)
Hose Tails: L series (-06 and -08), N series (-10 to -32)
